TRU-WELD

ACE-P100 PIN WELDER

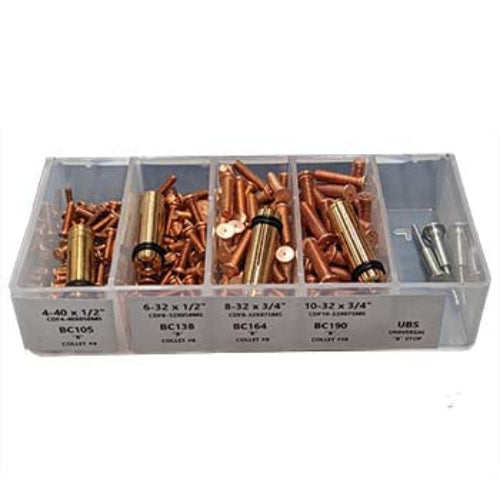

The ACE-P100 pin welder incorporates the latest technology into a compact, rugged, and portable machine. With an updated user interface and new system design, this unit has the capacity to weld pins up to 10 gauge and CD studs up to #10 faster than ever.

WELD RANGE	Weld Pins - Up to 10 Gauge CD Studs - Up to #10

POWER	Universal Input: 85-250 VAC @ 50/60 HZ Fusing Requirement: 10AMPS

DUTY CYCLE	15 to 30 Pins Per Minute

SAFETY	Thermal and Voltage Protection Indicators to Protect the Unit From Damage Due to Overheating or Poor Input Power

DIMENSIONS	6” H x 10.1” W x 12.5” L 10.2 Lbs (Excluding Hand Tool and Cables)

PERFORMANCE	Less Than 1 Second Recharge Time for Pin Welding

EASY TO USE	Intuitive Touchscreen Interface with Preset Values for Fast, Accurate, and Repeatable Weld Settings

COUNTER	Resettable Stud Job Counter
