Stud Gun Setup Guide for CD Studs using a "b" collet and "b" stop

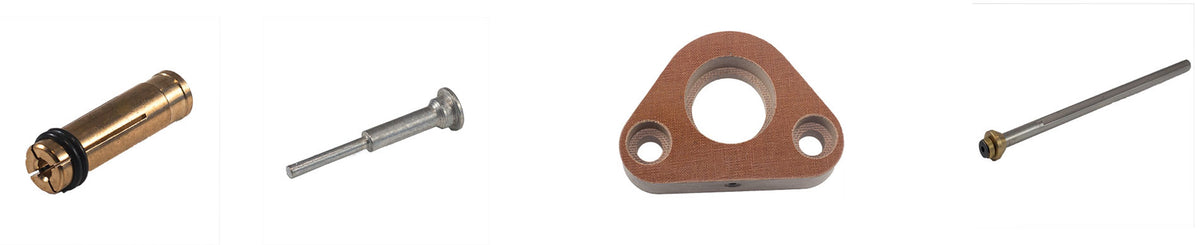

Follow these step-by-step instructions to properly set up your stud gun to weld CD studs.
This setup works for Truweld, Proweld, Midwest Fasteners, StudPro, Erico, H.A. Jones, and SWS stud welder guns.
1
STEP 1 - Cut the "B" stop to length

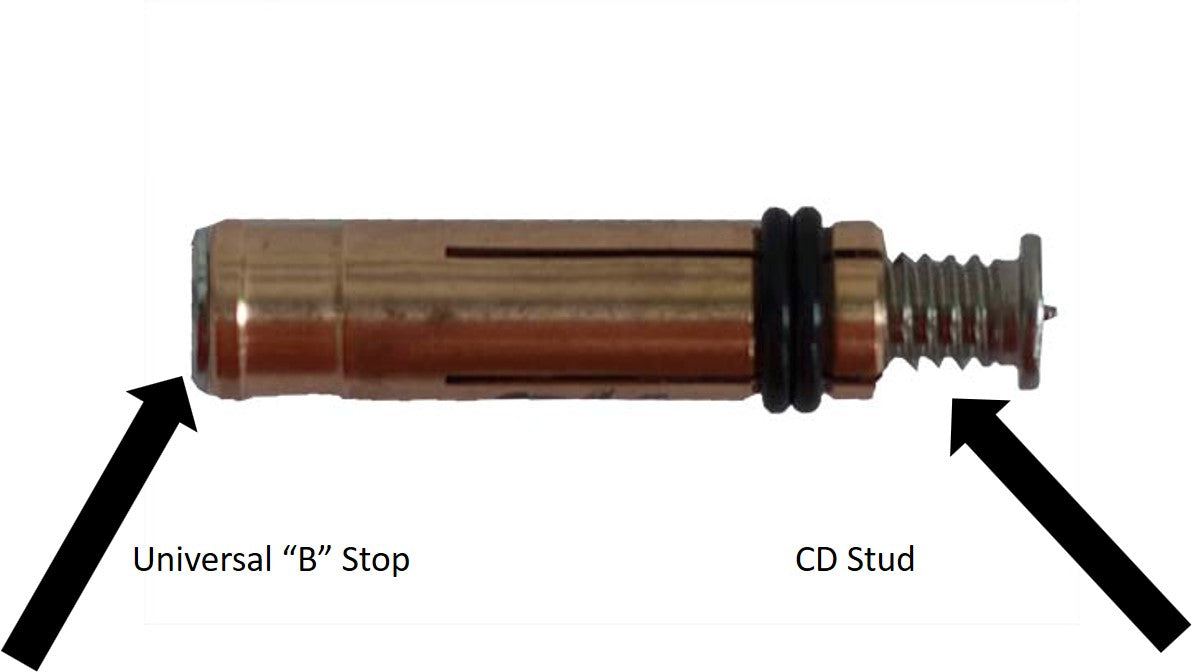

Cut the Universal "B" Stop to the length necessary based on the length of your stud. For a 1/2" CD stud, cut the stop so that 1/4" of the stud is in the collet and 1/4" is protruding. You want to get as much of the stud into the collet as possible but you need at least 1/8" sticking out.
2
STEP 2 - Insert Collet into the Gun
Place the Universal "B" Stop inside the collet, then install the collet in the gun shaft. Tighten the set screws.
3
4
STEP 4 - Assemble the stud gun

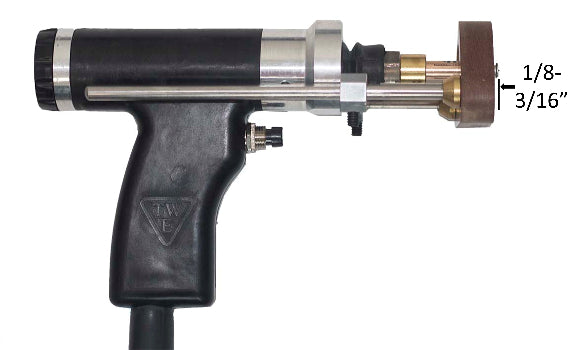

Slide the foot piece into face plate. Adjust so that 1/8" to 3/16" of the pin is sticking out past the spark shield and tighten the set screws in the face plate.
Setup Complete
Your stud welding gun is now properly configured and ready for use. For additional support or questions, contact our technical team.
