FG138
Ferrule Grips
$6.00 - $26.00

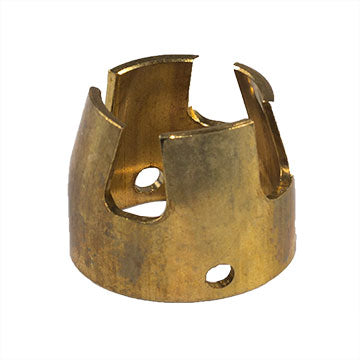

Ferrule Grips, sometimes called Ferrule Holders, are used on the drawn arc stud gun to hold the ferrules during the stud welding process.
These closed ferrule grips are generally used with studs 2" or shorter. For longer studs use a split ferrule grip and split arc foot to make it easier to load studs in the gun.
1" Long, Brass
Stud Welder Manufacturer Part Numbers:
| Size | Nelson | Proweld/ Truweld |
Image | Midwest Fasteners | Erico/KSM |
| 10 Gauge & # 6 | 501001002 | 102-0401-01 | 000-297 | ||
| #8 | 501001003 | 102-0401-13 | 039-138 | ||
| #10 (3/16") | 501001004 | GN-019 | G19 | 102-0401-02 | 000-284 |
| 1/4" | 501001005 | GN-025 | G25 | 102-0401-03 | 000-285 |
| 5/16" | 501001006 | GN-031 | G31 | 102-0401-04 | 000-286 |
| 3/8" | 501001007 | GN-037 | G37 | 102-0401-05 | 000-287 |
| 7/16" | 501001008 | GN-043 | G43 | 102-0401-06 | 000-288 |
| 1/2" | 501001009 | GN-050, | G50 | 102-0401-07 | 044-077 |
| 5/8" | 501001011 | GN-062 | G62 | 102-0401-08 | 048-310 |
| 3/4" | 501001014 | GN-075 | G75 | 102-0401-09 | 044-076 |
| 7/8" | 501001015 | GN-087 | G87 | 102-0401-10 | 044-075, |
| 1" | 501001016 | GN-100, | G1 | 102-0401-11, | 000-294 |
| 6mm | GN-006M, | ||||
| 8mm | GN-008M | ||||
| 12mm | GN-012M |
